Integrate Gateways and Devices with the Delta Controls Platform


TABLE OF CONTENTS


Description

Delta Controls is a Canada-based company that specializes in the development and production of Building Automation Systems (BAS). Since its founding in the 1980s, Delta Controls has been committed to providing comprehensive building energy management and intelligent control solutions through open protocols and highly scalable systems. Its product portfolio includes HVAC controllers, lighting control, security systems, and more, widely used in commercial buildings, hospitals, schools, and data centers. Delta is one of the early advocates of the BACnet protocol, emphasizing interoperability and long-term system compatibility. It is a leading brand in the global smart building automation industry.


This document mainly introduces how to use the UG65 gateway to connect with the enteliWEB platform and demonstrates the complete process of adding the AM319 BACnet Object data to enteliWEB.


Note: The AM319 device mentioned in this document is used only for demonstration purposes. Other types of sensors are also supported. Readers should refer to this guide according to their actual devices and environment.



Requirement

  • Gateway model: UG65 (UG56 or UG67 also supported)

  • Sensor Model: AM319

  • A functional enteliWEB platform

  • The gateway and enteliWEB must be on the same network


Configuration

Step 1: Gateway Configuration

a) Enable Embedded NS

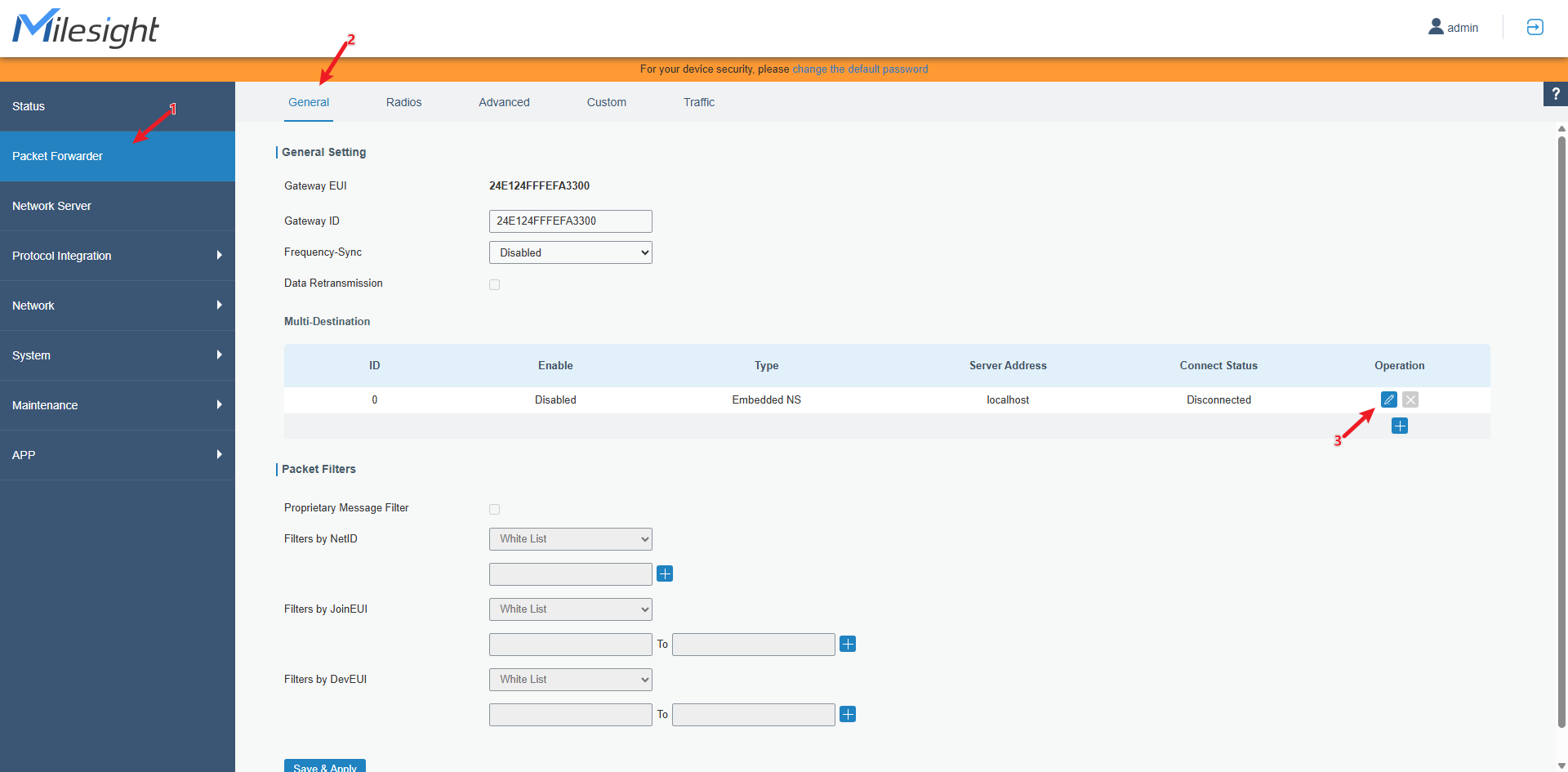

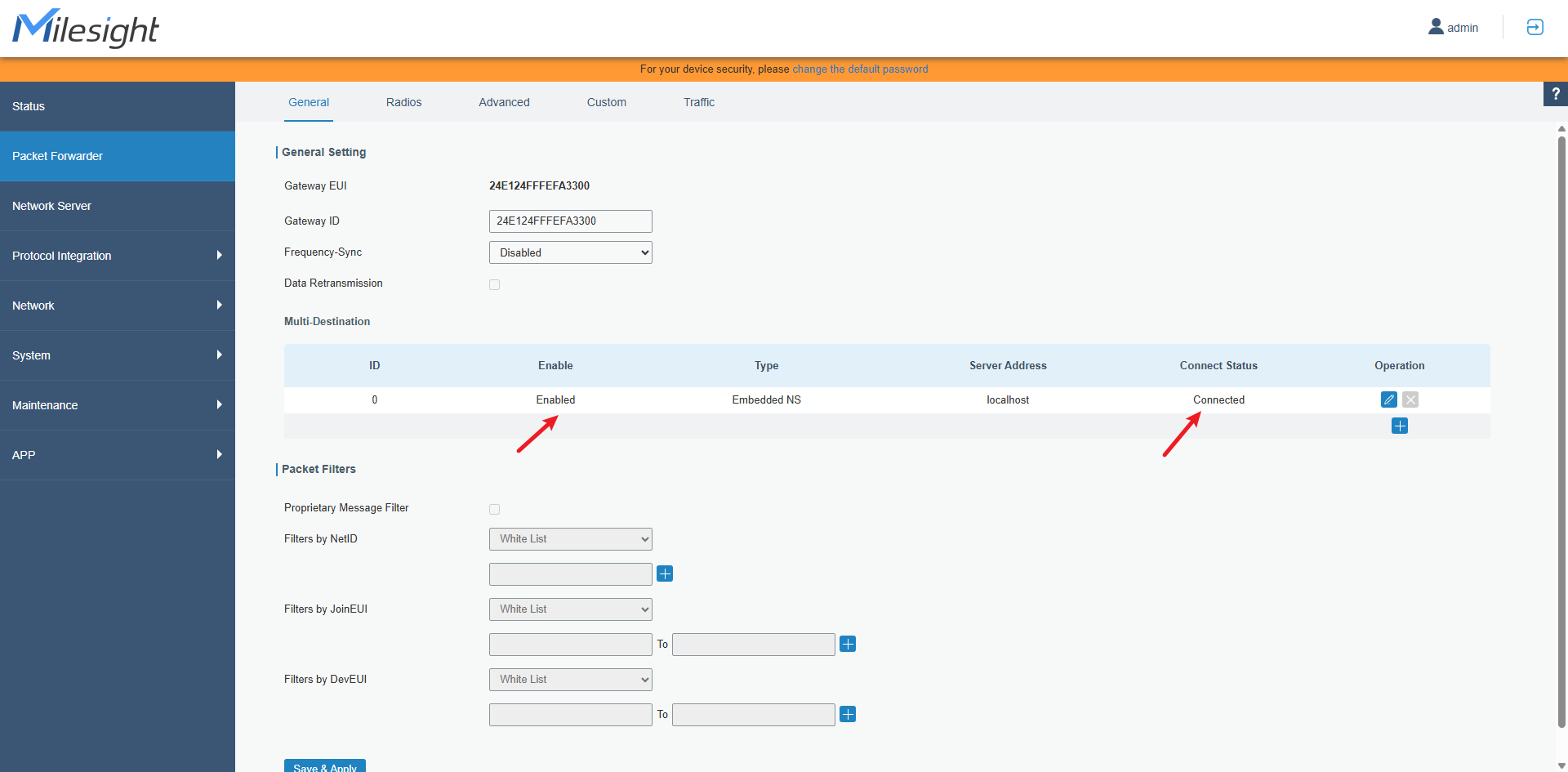

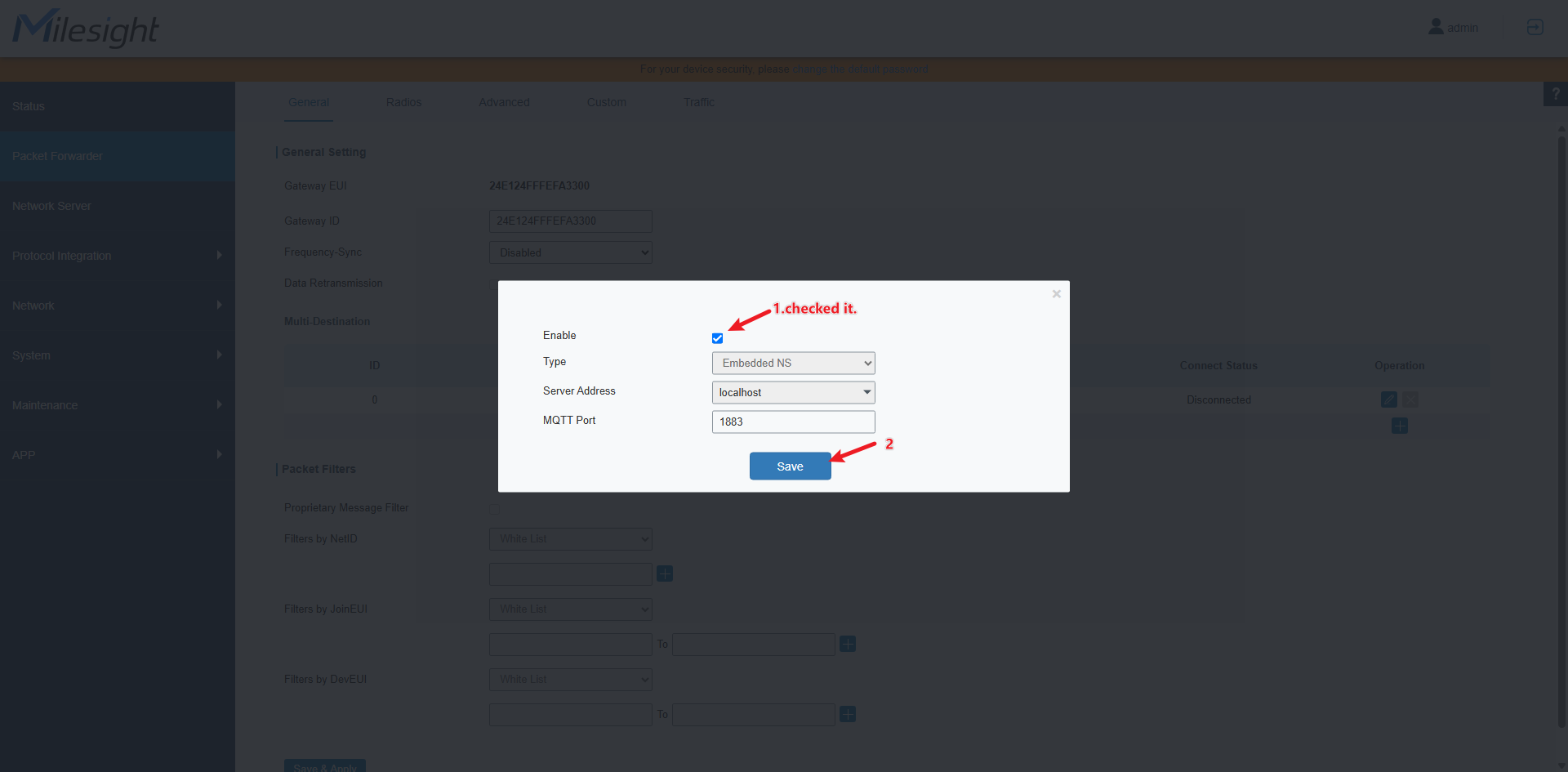

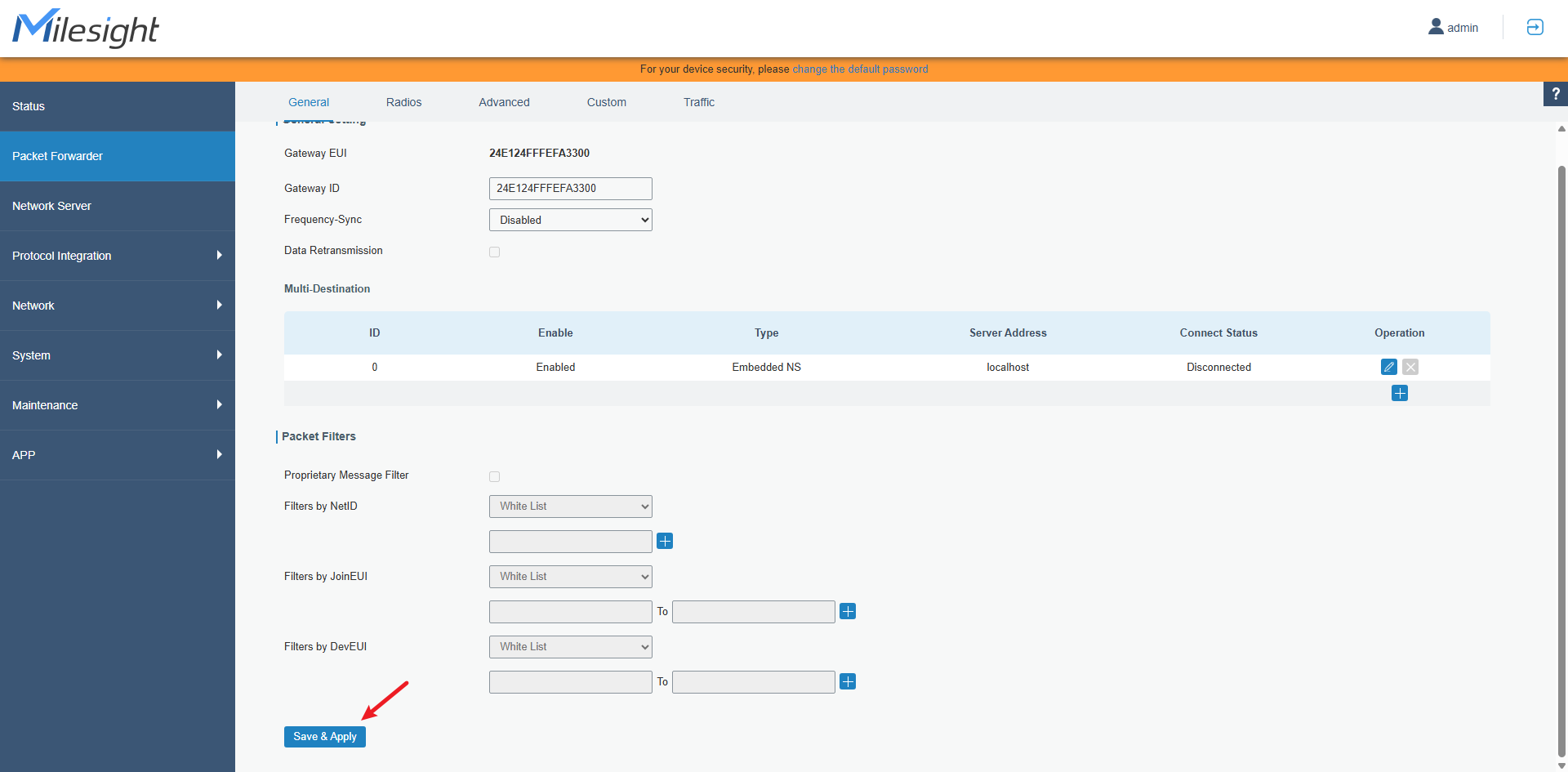

First, log in to the gateway management interface (see How to Login Web GUI of Milesight Gateway), then follow the steps as shown below:As shown in the image, once Embedded NS is marked as "Enabled" and "Connected," it indicates successful activation:


b) Add Sensor

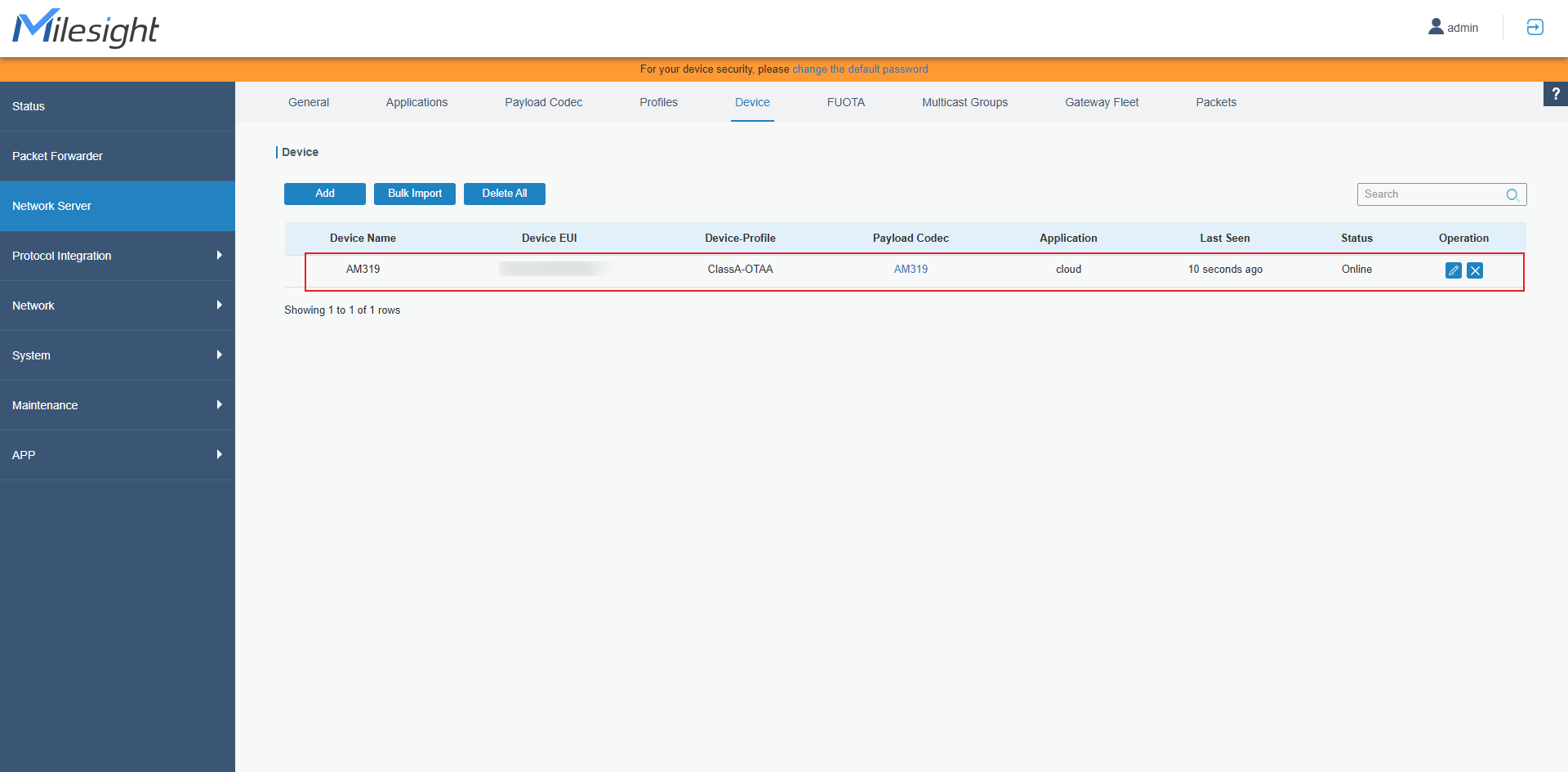

Refer to How to Connect LoRaWAN Nodes to Milesight Gateway for step-by-step instructions. Once completed, the result should appear as shown below:

c) Enable BACnet Server Feature

Enable it as shown below:


d) Enable BACnet Server Feature

Refer to How to Integrate LoRaWAN Devices to BACnet BMS System via Milesight Gateway.

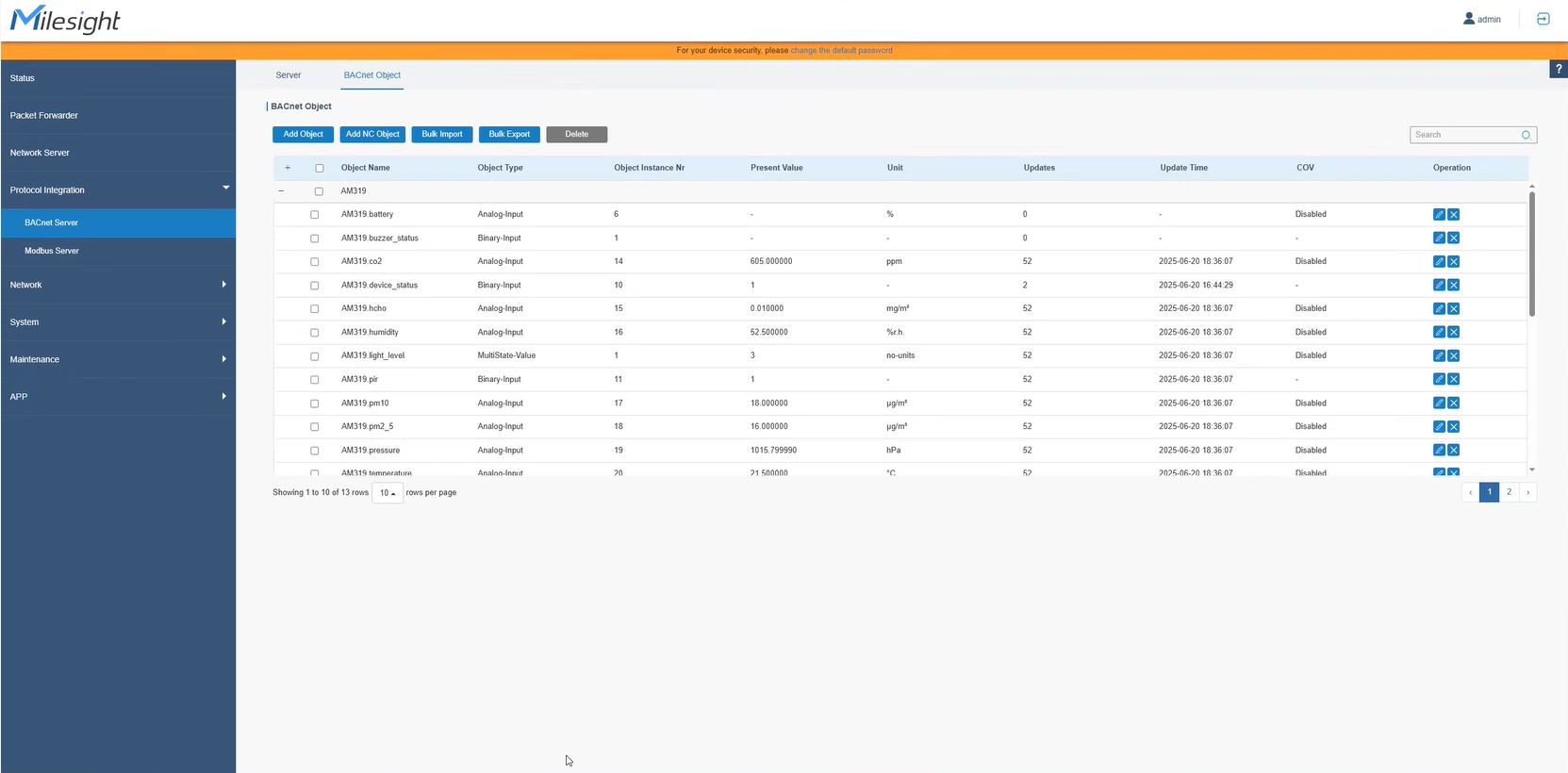

After adding, the result will appear like this:At this point, the gateway configuration is complete.

Next, we proceed to the enteliWEB platform for further setup and demonstration.

Step 2: Platform Configuration

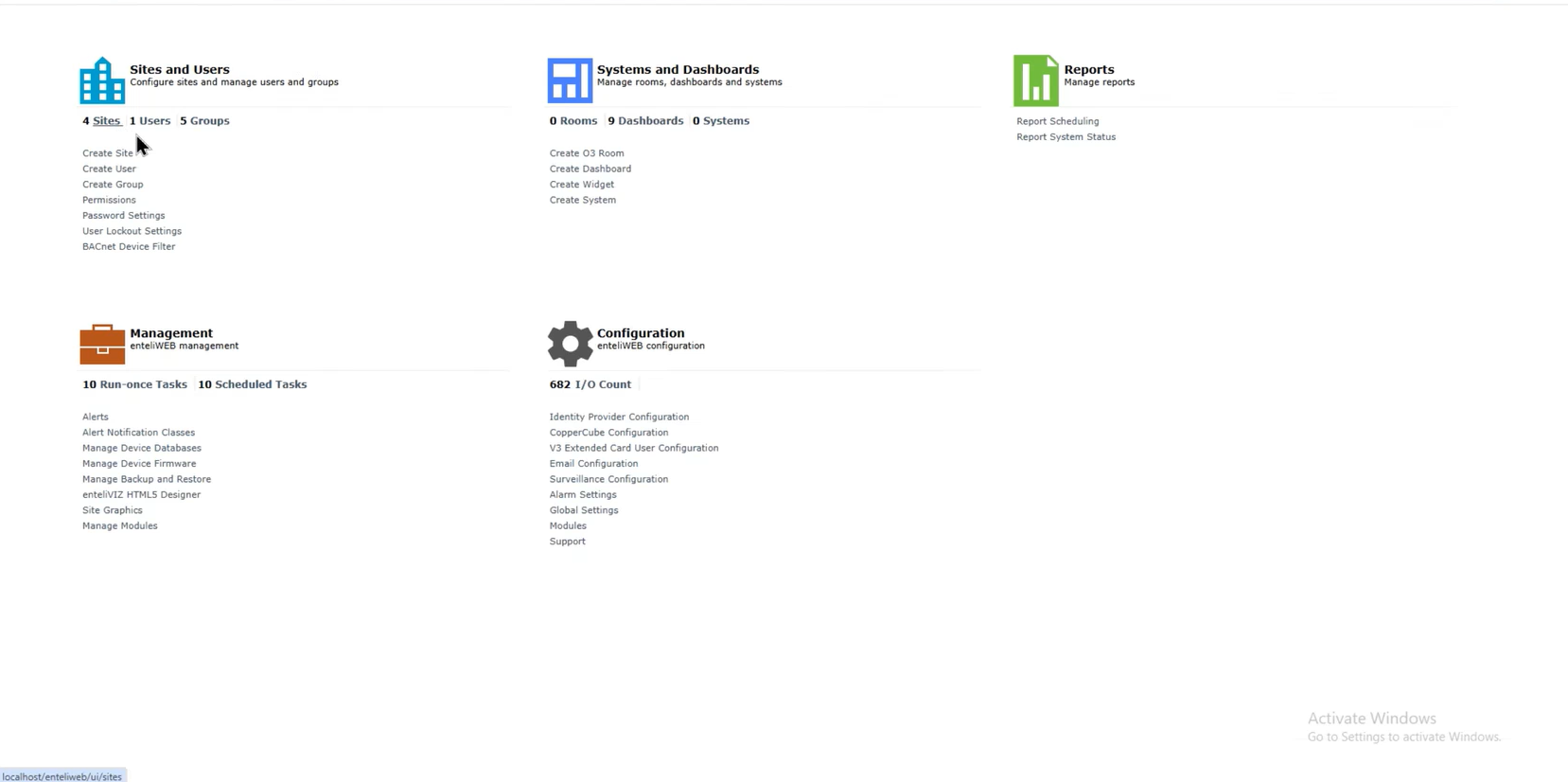

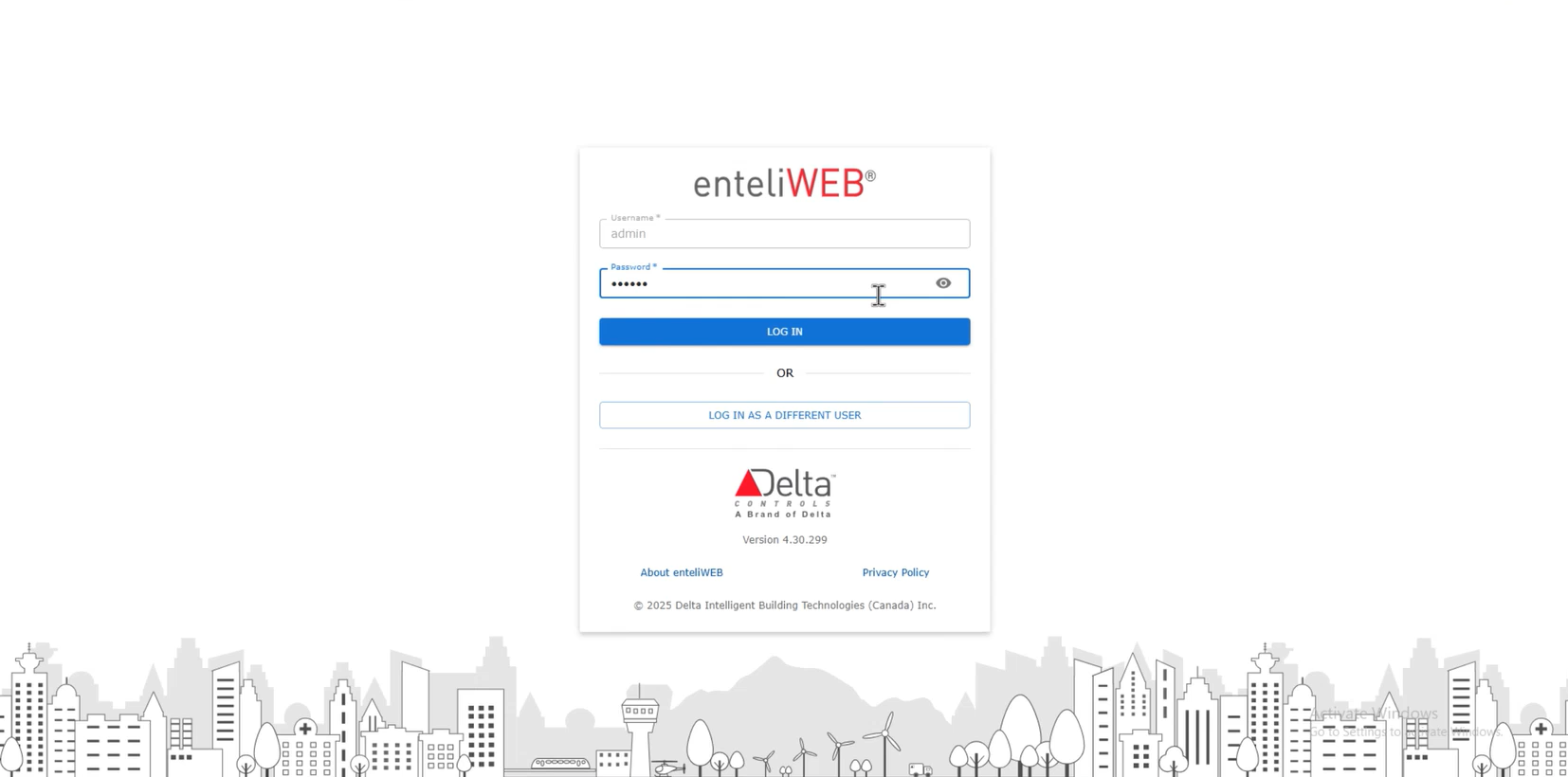

First, log in to the platform with your username and password:Then, click the Sites button as shown below:

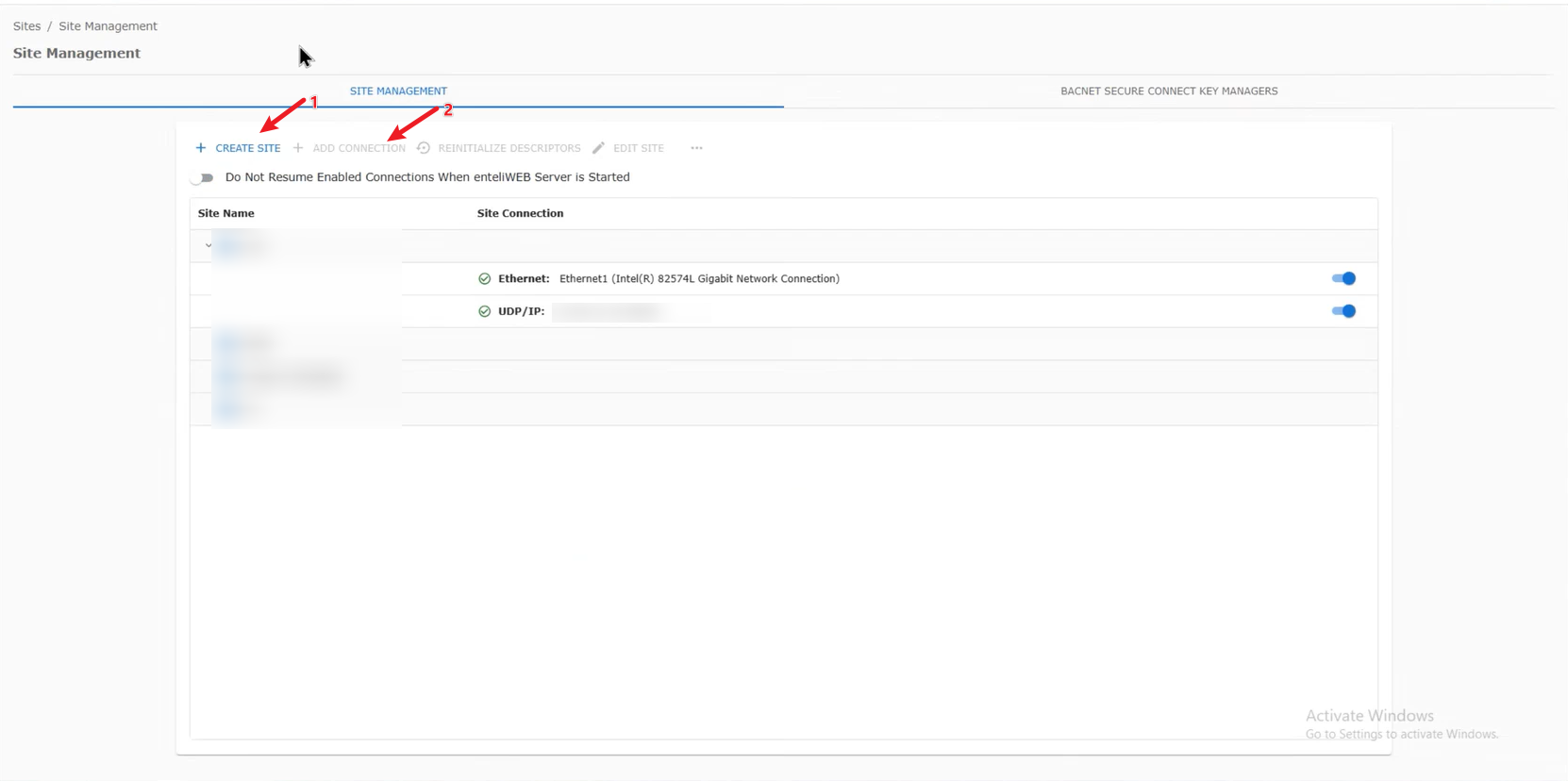

​First, create a new Site, then click the Add Connection button:

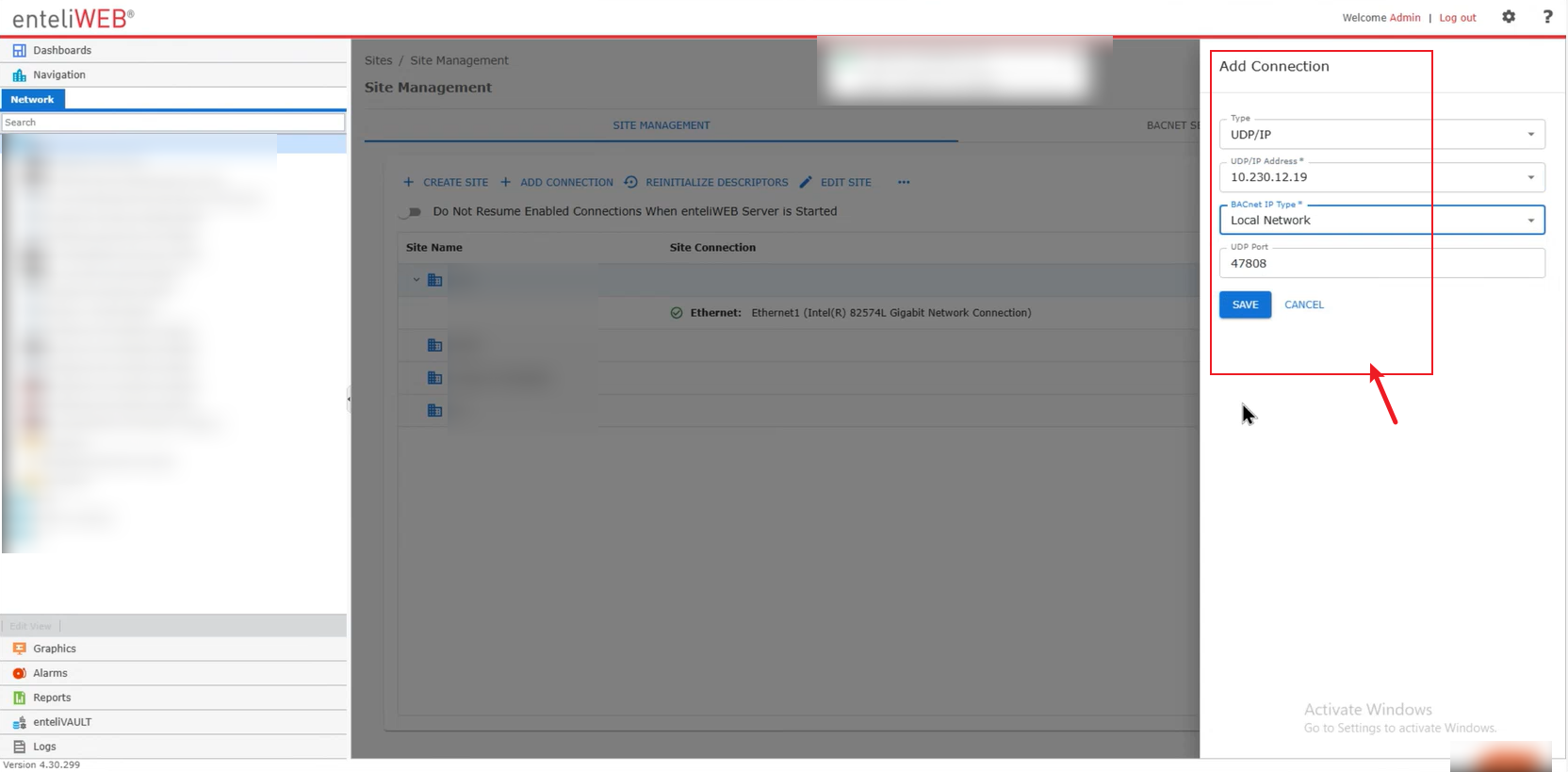

Fill in the parameters as shown in the example:After a short moment, the gateway information will automatically appear in the list on the left side:

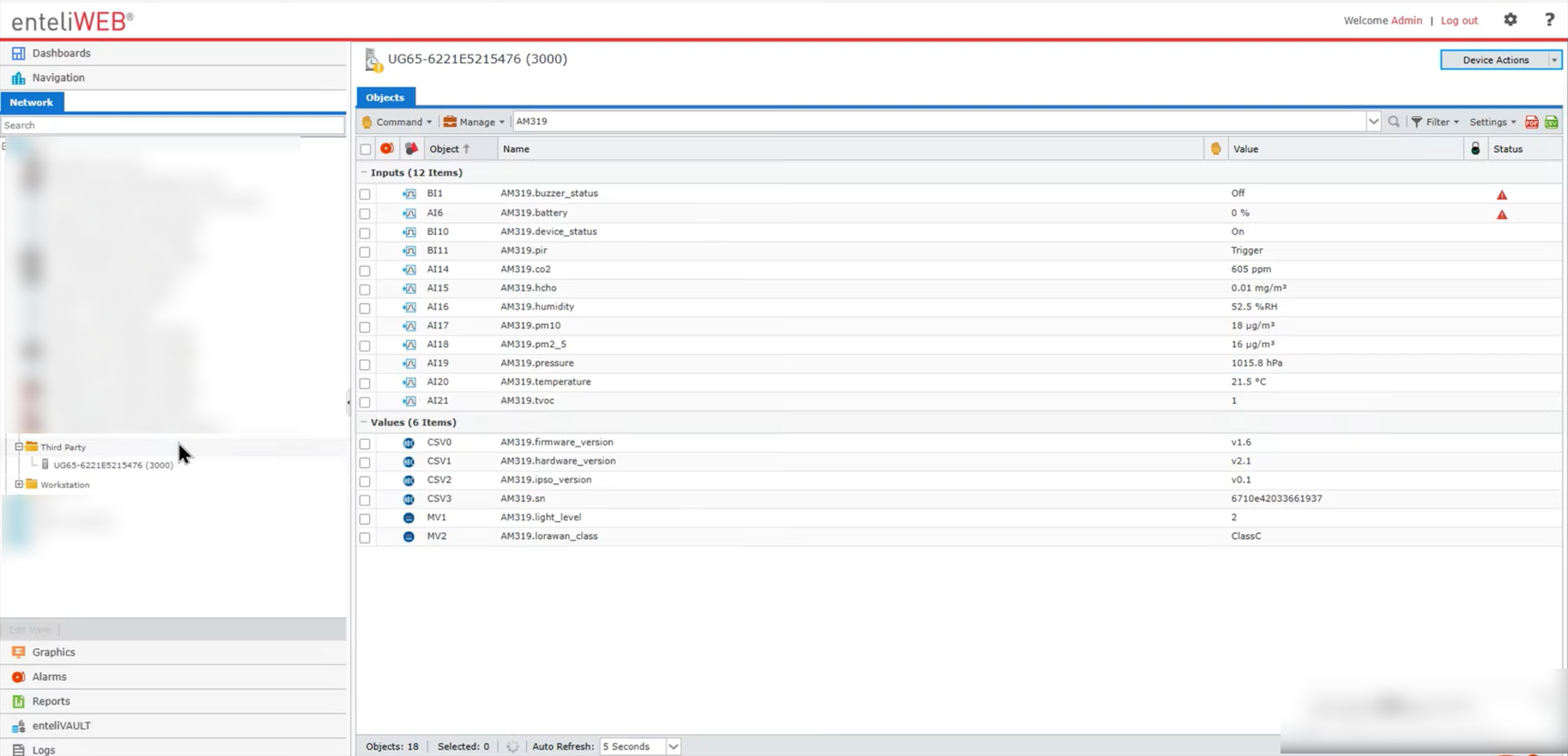

Click on this gateway, and the BACnet Object information of the AM319 device will automatically be discovered and listed on the right side, as shown below:

This concludes the full integration process of the Milesight gateway and sensor with enteliWEB.


For more information, please visit the official website.
